Dot Plot for Estimates and Confidence Intervals

Displays numeric estimates as points on a horizontal scale. Optional confidence limits are shown as horizontal lines with capped endpoints. Several series of estimates can be arranged in labelled groups.

Usage

plotDot(
  x,
  main = NULL,
  xlim = NULL,
  xax = NULL,
  axes = TRUE,
  items = NULL,
  groups = NULL,
  gap = 1,
  pch = .useTheme,
  cex = .useTheme,
  grid = .useTheme,
  box = .useTheme,
  stamp = .useTheme,
  ...
)

Arguments

x

numeric estimates or confidence interval data. Supported formats are a numeric vector, a numeric matrix, a three-dimensional numeric array, or a "CI" object created with as.CI()

main

main title. NULL (default) draws none. "", NA or FALSE also suppress it; the top margin is compacted whenever no title is drawn.

xlim

numeric vector containing the limits of the horizontal axis; by default, the range of all estimates and confidence limits

xax

optional specification for the horizontal axis, interpreted by the internal axis renderer

axes

logical; whether the horizontal and item axes are drawn

items

optional character vector containing the item labels; defaults to the row names or first dimension names of x

groups

optional character vector containing the group labels; defaults to the column names or third dimension names of x

gap

non-negative number, the vertical space between groups in item rows

pch

specification for the estimate points. The default .useTheme uses the point settings of the active theme. A plotting symbol or a named list containing parameters such as pch, col, bg, and cex can also be supplied

cex

character expansion factor for the points. .useTheme (default) resolves to getTheme()$points$cex.

grid

specification controlling the horizontal item and group grid lines. The default .useTheme follows the active theme. A logical value, NA, or a named list of graphical parameters can also be supplied

box

specification controlling the plot box. The default .useTheme uses the active theme. A logical value, NA, or a named list of graphical parameters can also be supplied

stamp

controls the corner stamp. .useTheme (default) resolves to getTheme()$stamp. TRUE/FALSE/ NULL, a string, or a named list for stamp().

...

additional graphical parameters passed to graphics::par(). A mar that sets the left side switches off the automatic widening of the left margin for the labels.

Value

invisibly, a list containing:

ypos

vertical positions of the items within each group, a list in the order of the groups

group_y

vertical positions of the group labels

sep_y

vertical positions of the group separators

Details

A numeric vector represents one estimate for each item; a one-dimensional table or array, such as the result of tapply() with one grouping factor, is treated the same way.

A numeric matrix represents estimates only: rows define the items and columns define the groups. Consequently, a matrix with three columns is interpreted as three groups and not automatically as estimates with lower and upper confidence limits.

Use as.CI() to declare explicitly that a matrix, data frame, list, or result from tapply() contains confidence interval data:

plotDot(as.CI(x))

A "CI" object contains the columns est, lci, and uci. Additional columns can define the item and group structure. If two additional columns are present, the first defines the items and the second defines the groups.

Confidence interval data can alternatively be supplied as a three-dimensional numeric array with dimensions items × 3 × groups. The second dimension must contain, in this order, the estimate, lower confidence limit, and upper confidence limit.

Values supplied directly as arguments take precedence over the corresponding settings of the active theme. Vectors in pch (e.g. pch = list(col = c("red", "blue"))) are recycled over the groups, in the order in which the groups are drawn from top to bottom.

See also

as.CI(), isCI(), graphics::dotchart()

Other plot.univariate: plotArea(), plotBar(), plotBox(), plotCatDist(), plotDens(), plotDensBox(), plotECDF(), plotFreqDist(), plotLines(), plotQQ(), plotViolin()

Examples

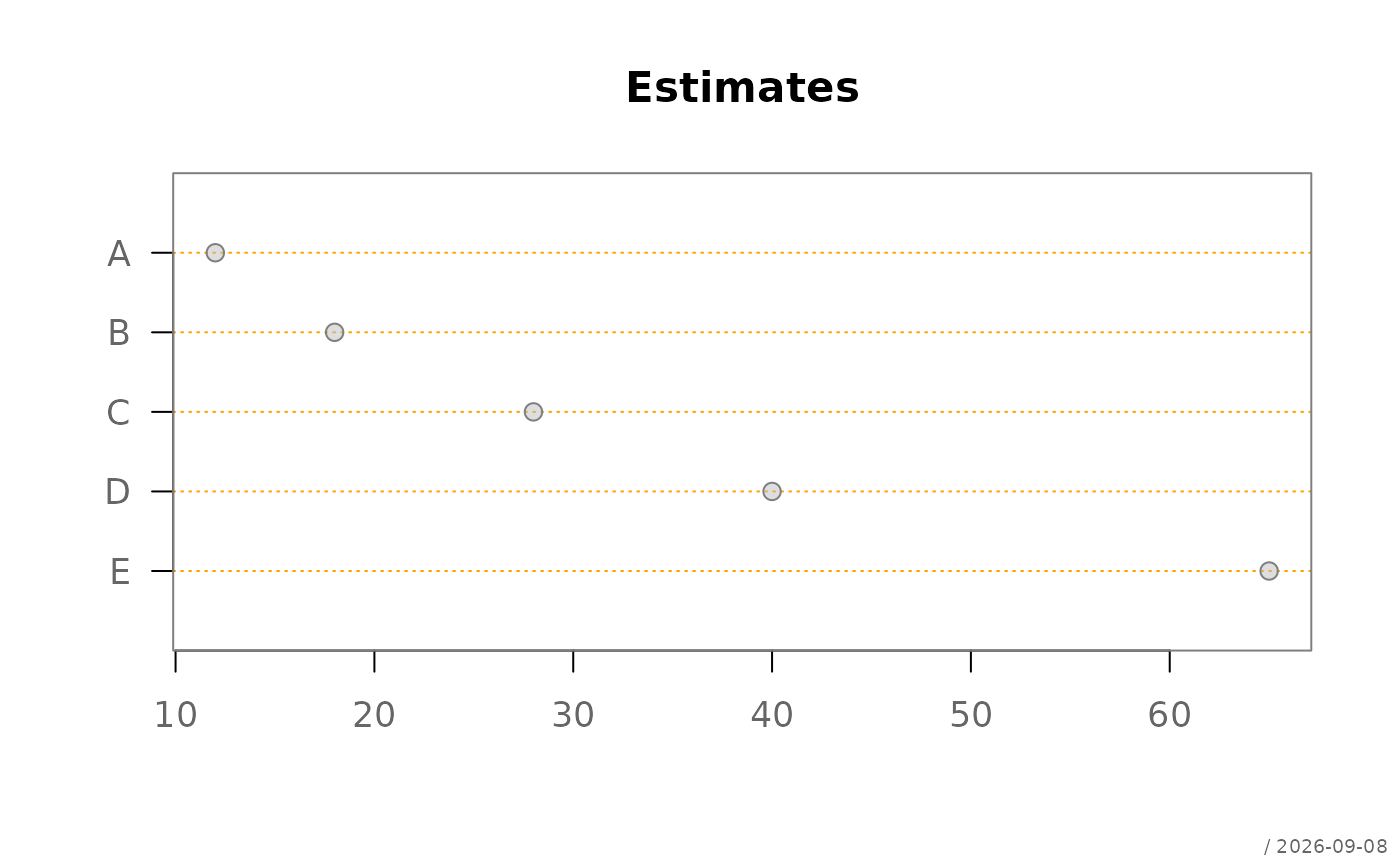

# estimates for a single series
est <- c(A = 12, B = 18, C = 28, D = 40, E = 65)

plotDot(
  est,
  main = "Estimates"
)

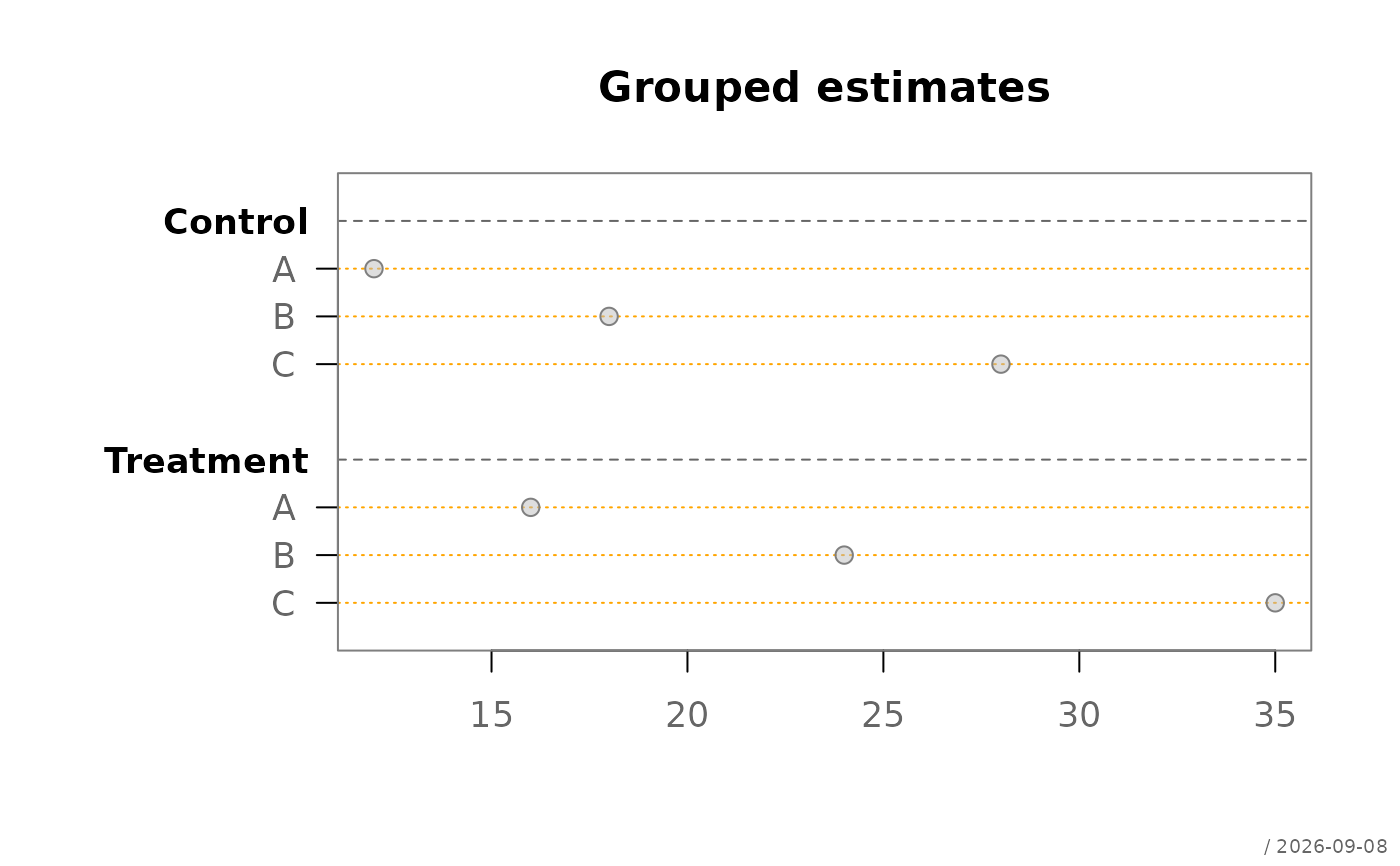

# matrix columns represent groups of estimates
groupedEst <- cbind(
  Control = c(A = 12, B = 18, C = 28),
  Treatment = c(A = 16, B = 24, C = 35)
)

plotDot(
  groupedEst,
  main = "Grouped estimates"
)

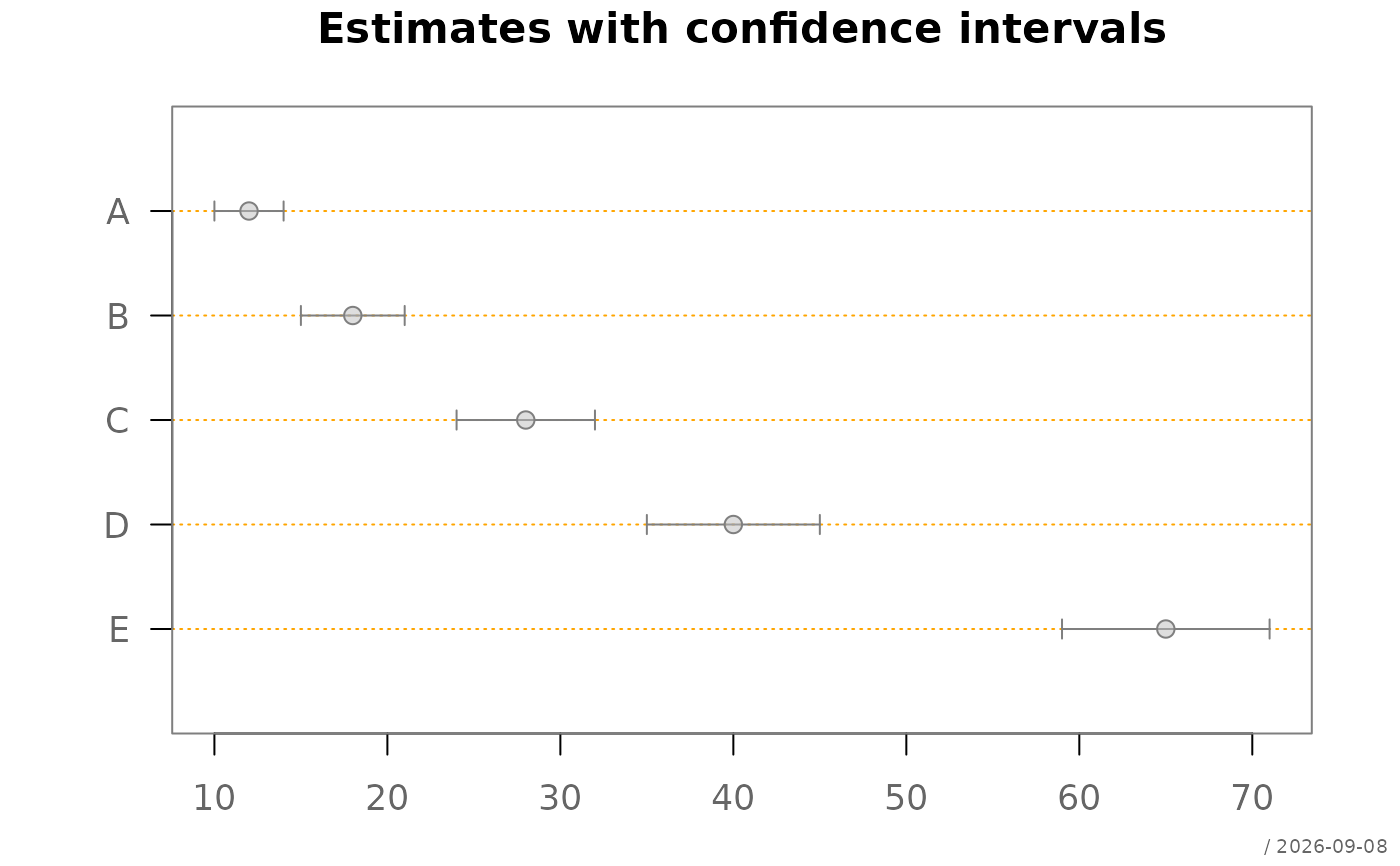

# confidence intervals stored in a matrix
ci <- cbind(
  est = est,
  lci = est - c(2, 3, 4, 5, 6),
  uci = est + c(2, 3, 4, 5, 6)
)

plotDot(
  as.CI(ci),
  main = "Estimates with confidence intervals"
)

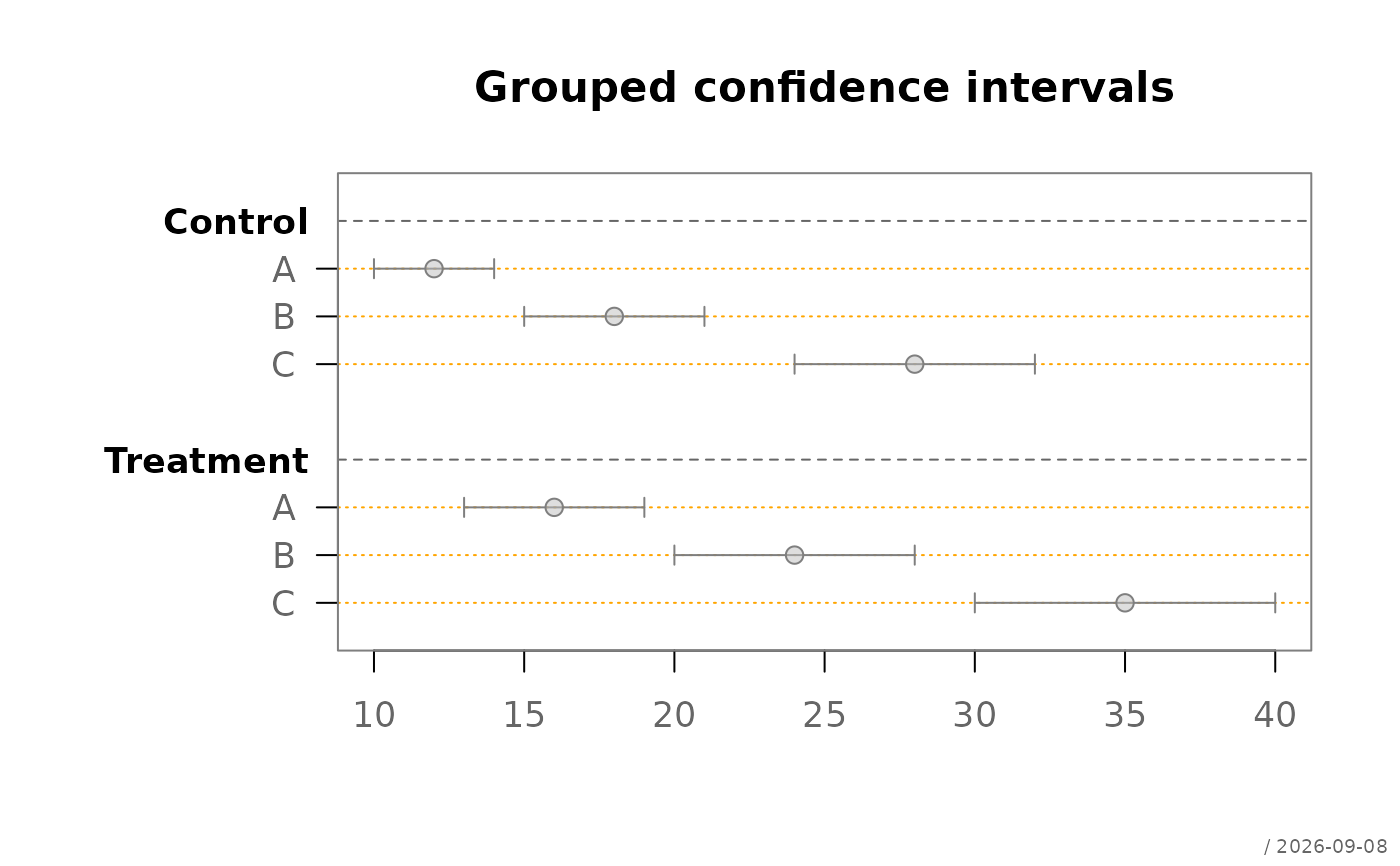

# grouped confidence intervals stored in a data frame
groupedCI <- data.frame(
  item = rep(c("A", "B", "C"), 2),
  group = rep(c("Control", "Treatment"), each = 3),
  estimate = c(12, 18, 28, 16, 24, 35),
  lower = c(10, 15, 24, 13, 20, 30),
  upper = c(14, 21, 32, 19, 28, 40)
)

plotDot(
  as.CI(
    groupedCI,
    estimate = "estimate",
    lower = "lower",
    upper = "upper"
  ),
  main = "Grouped confidence intervals"
)

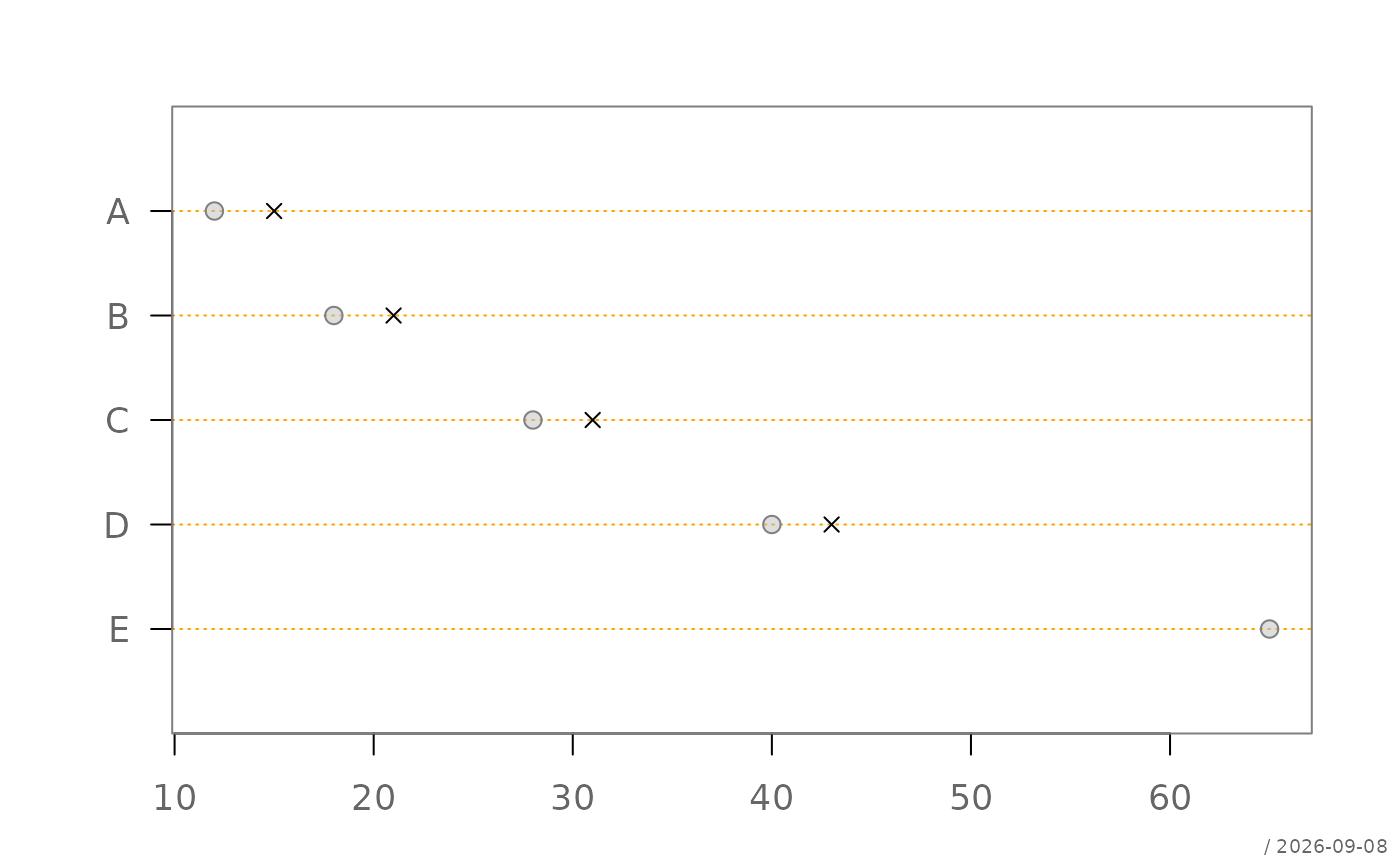

# returned positions can be used to add graphical elements
pos <- plotDot(est)

points(
  est + 3,
  y = unlist(pos$ypos),
  pch = 4
)
