Line Plot for Multiple Series

Source: R/plotLines.R
plotLines.Rd

Draws one or several line series using graphics::matplot(). The function accepts either a matrix of values or separate x and y coordinates and supports optional point symbols, grid lines, and an automatically positioned legend.

Usage

plotLines(
  x,
  y,
  main = NULL,
  xlab = "",
  ylab = "",
  xlim = NULL,
  ylim = NULL,
  xax = NULL,
  yax = NULL,
  lty = 1,
  lwd = 2,
  col = .useTheme,
  points = FALSE,
  grid = .useTheme,
  legend = TRUE,
  stamp = .useTheme,
  ...
)

Arguments

x

numeric vector, matrix or data frame. If y is missing, x is interpreted as a matrix of series where rows correspond to x positions and columns to individual lines.

y

optional numeric vector or matrix giving the y-values. If supplied, x is interpreted as the x-coordinates.

main

main title. NULL (default) draws none, unless the theme sets autoTitle = TRUE (see theme); the title is then derived from the input. "", NA or FALSE always suppress it and compact the top margin; any other string is used as given.

xlab, ylab

labels for the axes.

xlim, ylim

limits for the axes.

xax, yax

axis specification passed to graphics::axis().

lty

line type(s).

lwd

line width(s).

col

colours for the lines. .useTheme (default) resolves to pal(getTheme()$palette), the active theme's qualitative palette.

points

controls drawing of points on the lines. FALSE (default) suppresses points; TRUE draws with theme defaults (getTheme()$points); a named list overrides individual elements (pch, col, bg, cex).

grid

controls drawing of the background grid. .useTheme (default) follows the active theme (getTheme()$grid). TRUE/FALSE/NA, or a named list, as for graphics::grid().

legend

controls the legend. TRUE (default) draws an inline legend via textLegend at the last value of each series. FALSE/NA suppresses it. A list overrides legend arguments.

stamp

controls the corner stamp. .useTheme (default) resolves to getTheme()$stamp. TRUE/FALSE/NULL, a string, or a named list for stamp().

...

additional graphical parameters passed to graphics::par() via .applyParFromDots() and to the plotting functions.

Value

Invisibly returns a list containing:

  • x the x-values used for plotting,

  • y the y-values (if supplied),

  • legend the legend specification if drawn.

Details

If y is missing, x is interpreted as a matrix and each column is drawn as a separate line. Row names are used for the x-axis labels if available. The legend labels default to the column names of the data.

See also

Other plot.univariate: plotArea(), plotBar(), plotBox(), plotCatDist(), plotDens(), plotDensBox(), plotDot(), plotECDF(), plotFreqDist(), plotQQ(), plotViolin()

Examples

m <- matrix(c(3,4,5,1,5,4,2,6,2), nrow = 3,
            dimnames = list(
              dose = c("A","B","C"),
              age  = c("2000","2001","2002")
            ))

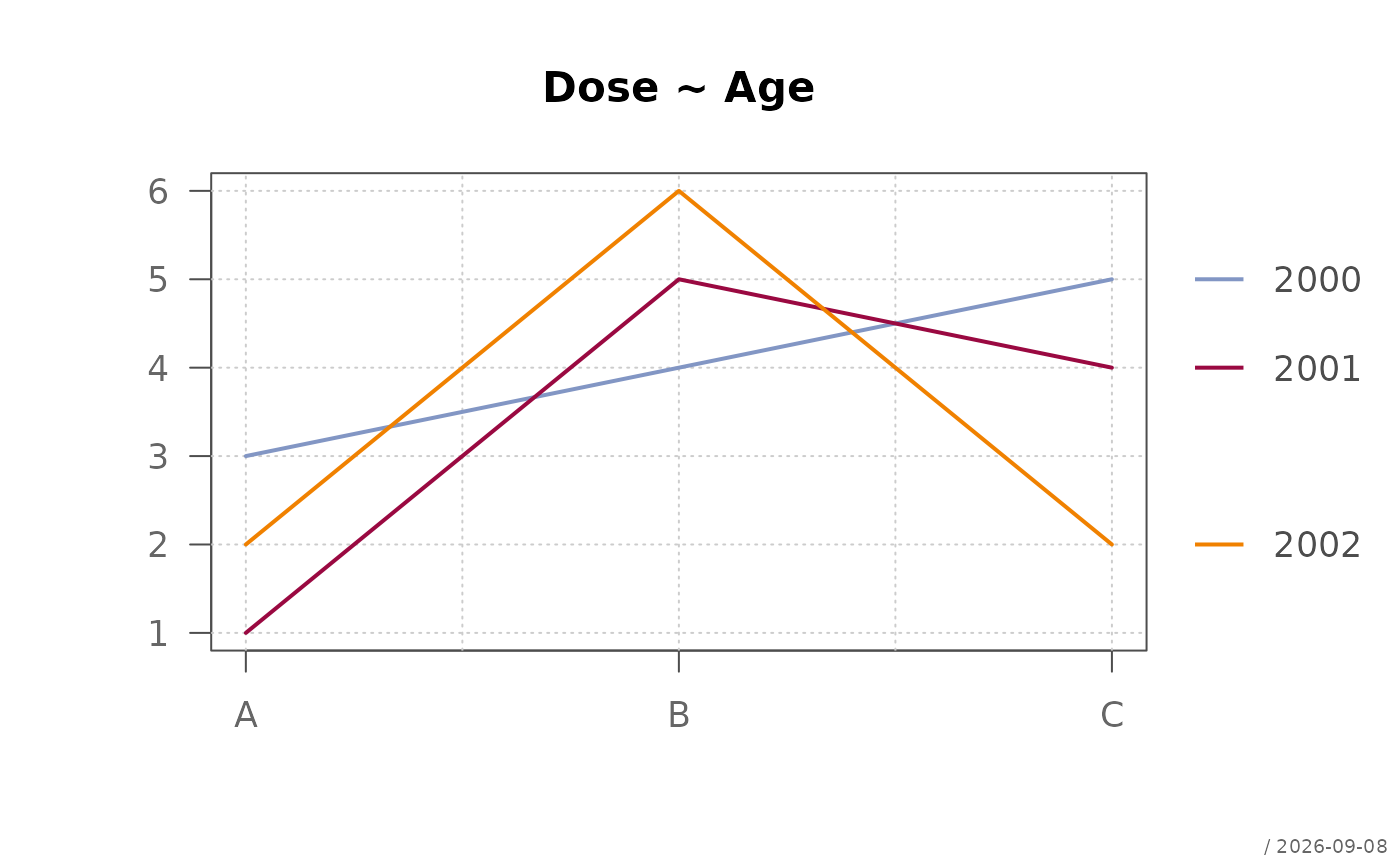

plotLines(m, lwd = 2, main = "Dose ~ Age")

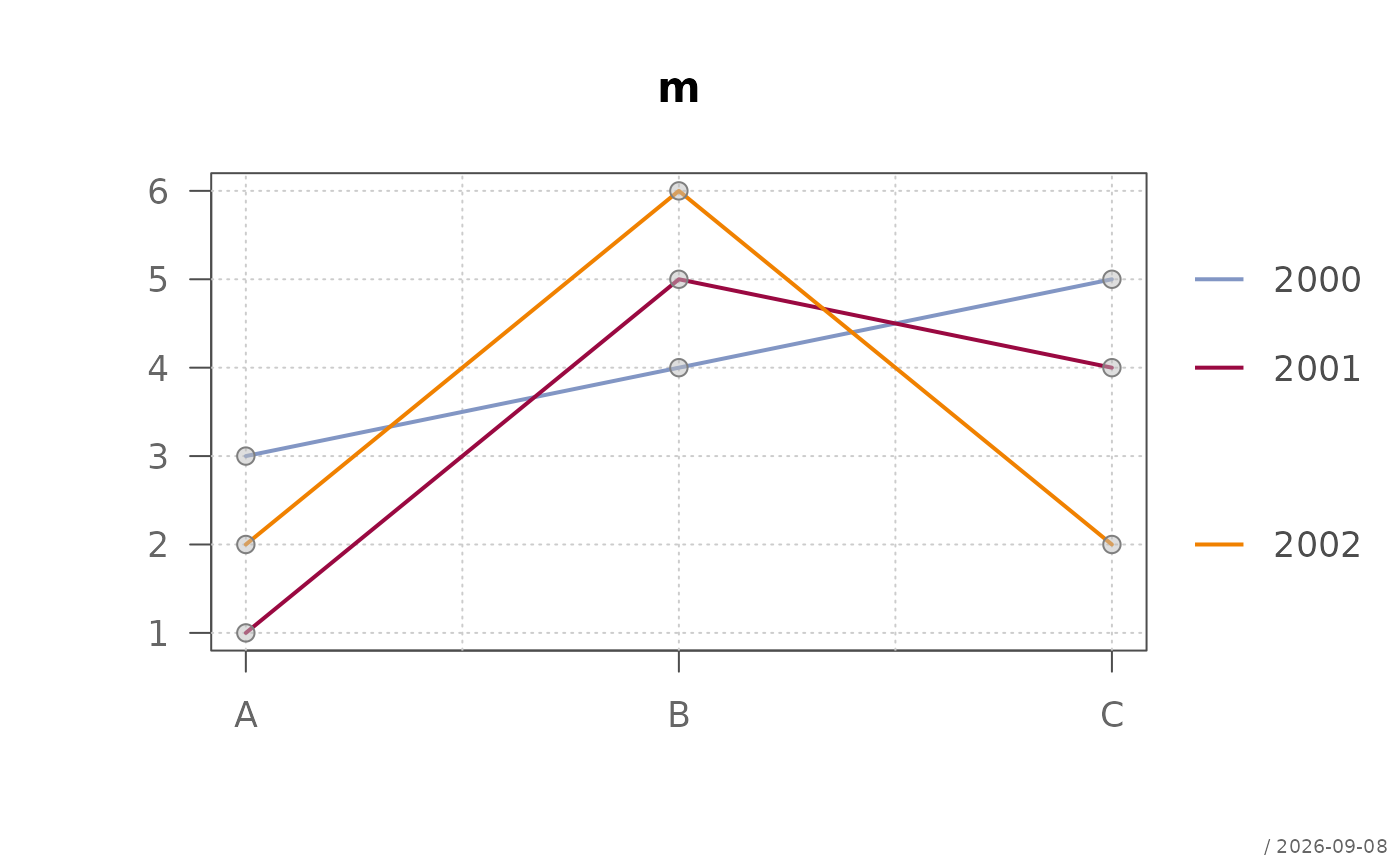

# with points
plotLines(m, points = TRUE)


# custom legend

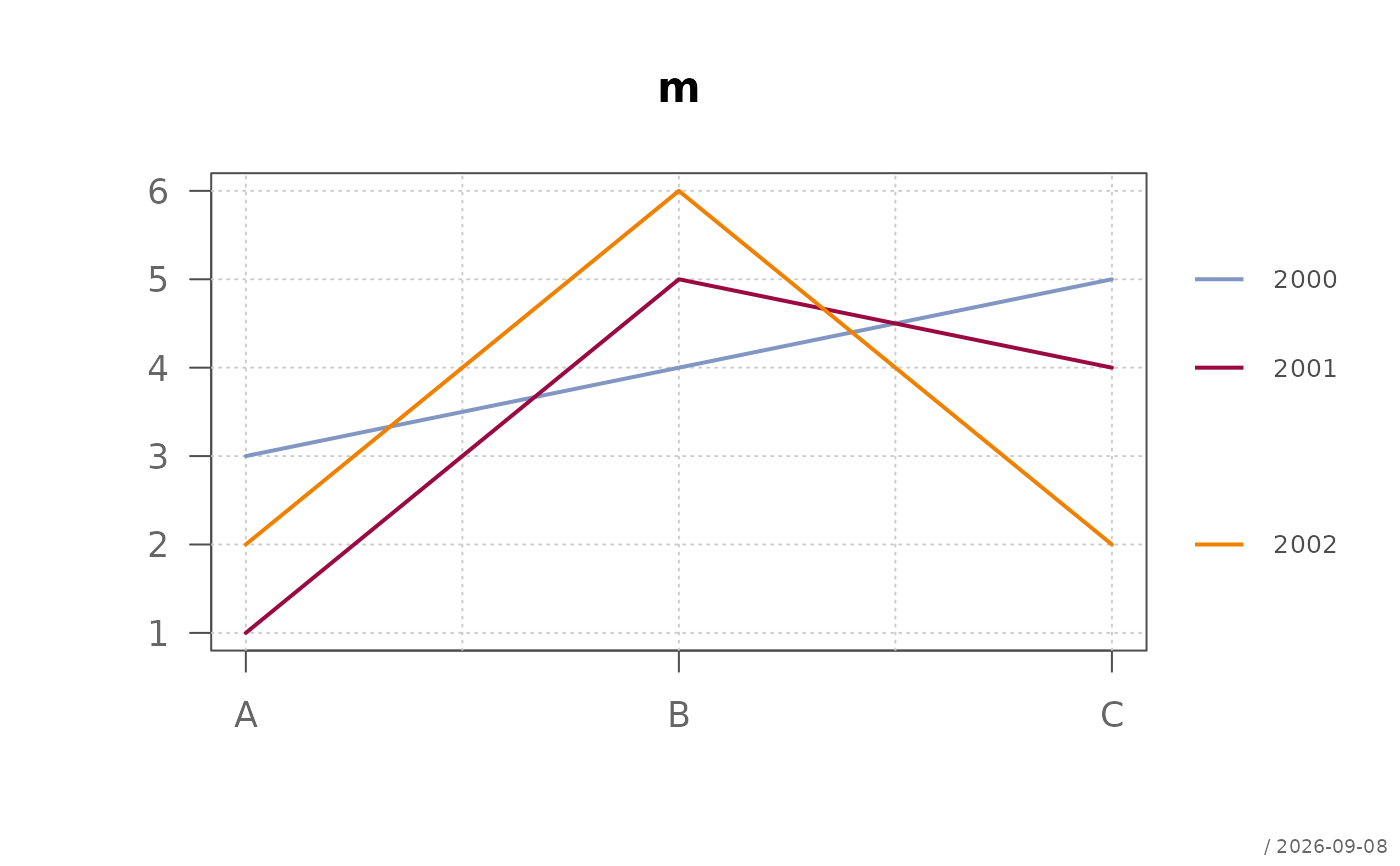

plotLines(m, legend = list(cex = 0.8))
