Grouped Boxplot

Source: R/plotBox.R
plotBox.Rd

Draws boxplots for a numeric variable, optionally grouped by a categorical variable. Group means and a reference line for the overall mean can optionally be overlaid.

Usage

plotBox(x, ...)

# Default S3 method
plotBox(
  x,
  groups = NULL,
  order = NULL,
  horiz = FALSE,
  main = NULL,
  xlab = "",
  ylab = "",
  ylim = NULL,
  col = NULL,
  grid = TRUE,
  means = TRUE,
  stamp = .useTheme,
  ...
)

# S3 method for class 'formula'
plotBox(
  formula,
  data,
  subset,
  na.action = na.omit,
  horiz = FALSE,
  main = NULL,
  xlab = "",
  ylab = "",
  ...
)

Arguments

x

numeric vector, or a formula of the form x ~ g.

...

graphical parameters. Parameters recognized by the internal graphics framework are applied via par(); remaining arguments are forwarded to graphics::boxplot(). By default the boxes are drawn without an outline (boxlty = 0) and with a grey median (medcol = "grey50"). Supplying border draws the outline in that color, and the median follows it; boxlty and medcol given explicitly take precedence.

groups

optional grouping variable (ignored if a formula is used).

order

optional order of the groups along the group axis: a character vector of group levels, e.g. order = c("versicolor", "virginica", "setosa"), or their positions (order = c(2, 3, 1)). Levels not mentioned follow in their original order. NULL (default) keeps the order of the factor levels. Colors given in col apply to the groups in the order drawn.

horiz

logical. If TRUE, the boxes are drawn horizontally, as with boxplot(horizontal = TRUE): groups on the y-axis, values on the x-axis. Default FALSE. The left margin is then widened to the longest group label, unless mar in ... sets the left side.

main

main title. NULL (default) draws none, unless the theme sets autoTitle = TRUE (see theme); the title is then derived from the input: the formula, or x ~ g for the default method. "", NA or FALSE always suppress it and compact the top margin; any other string is used as given.

xlab

label for the x-axis, i.e. the horizontal axis as drawn (the value axis if horiz = TRUE).

ylab

label for the y-axis, i.e. the vertical axis as drawn (the group axis if horiz = TRUE).

ylim

numeric vector of length 2 specifying the limits of the value axis (the x-axis if horiz = TRUE, as in graphics::boxplot()). If NULL (default), the range of x is used.

col

vector of fill colors, recycled over the groups. NULL (default) uses "grey90".

grid

controls drawing of the background grid. Can be:

  • TRUE: draw grid with default settings (lines along the value axis only)

  • FALSE, NULL, or NA: suppress grid

  • a named list: arguments passed to graphics::grid(), e.g. list(col = "red", nx = NA, ny = NULL) for horizontal lines only

means

controls drawing of group means and an overall mean reference line. Can be:

  • TRUE: draw with default settings

  • FALSE, NULL, or NA: suppress

  • a named list: arguments passed to the internal means function. Supported arguments: col, pch, cex, lcol, lty, lwd.

stamp

controls the corner stamp. .useTheme (default) resolves to getTheme()$stamp. TRUE/FALSE/NULL, or an explicit string, as for .withGraphicsState() (internal).

formula

a formula of the form y ~ group, or y ~ a:b for the cells of several grouping variables. y ~ a + b is not accepted, see bedrock::resolveFormula().

data

an optional data frame containing the variables in the formula.

subset

an optional expression indicating which observations to use, evaluated in data (subset = len > 10), as in boxplot().

na.action

a function specifying how missing values are handled, defaults to na.omit().

Value

Invisibly returns NULL.

Details

Optional plot components are controlled using bedrock::callIf() semantics:

  • TRUE: draw with defaults

  • FALSE, NULL, or NA: suppress component

  • named list: customize component arguments

See also

graphics::boxplot(), bedrock::callIf()

Other plot.univariate: plotArea(), plotBar(), plotCatDist(), plotDens(), plotDensBox(), plotDot(), plotECDF(), plotFreqDist(), plotLines(), plotQQ(), plotViolin()

Examples

set.seed(1)
x <- rnorm(100)
g <- sample(c("A", "B"), 100, TRUE)

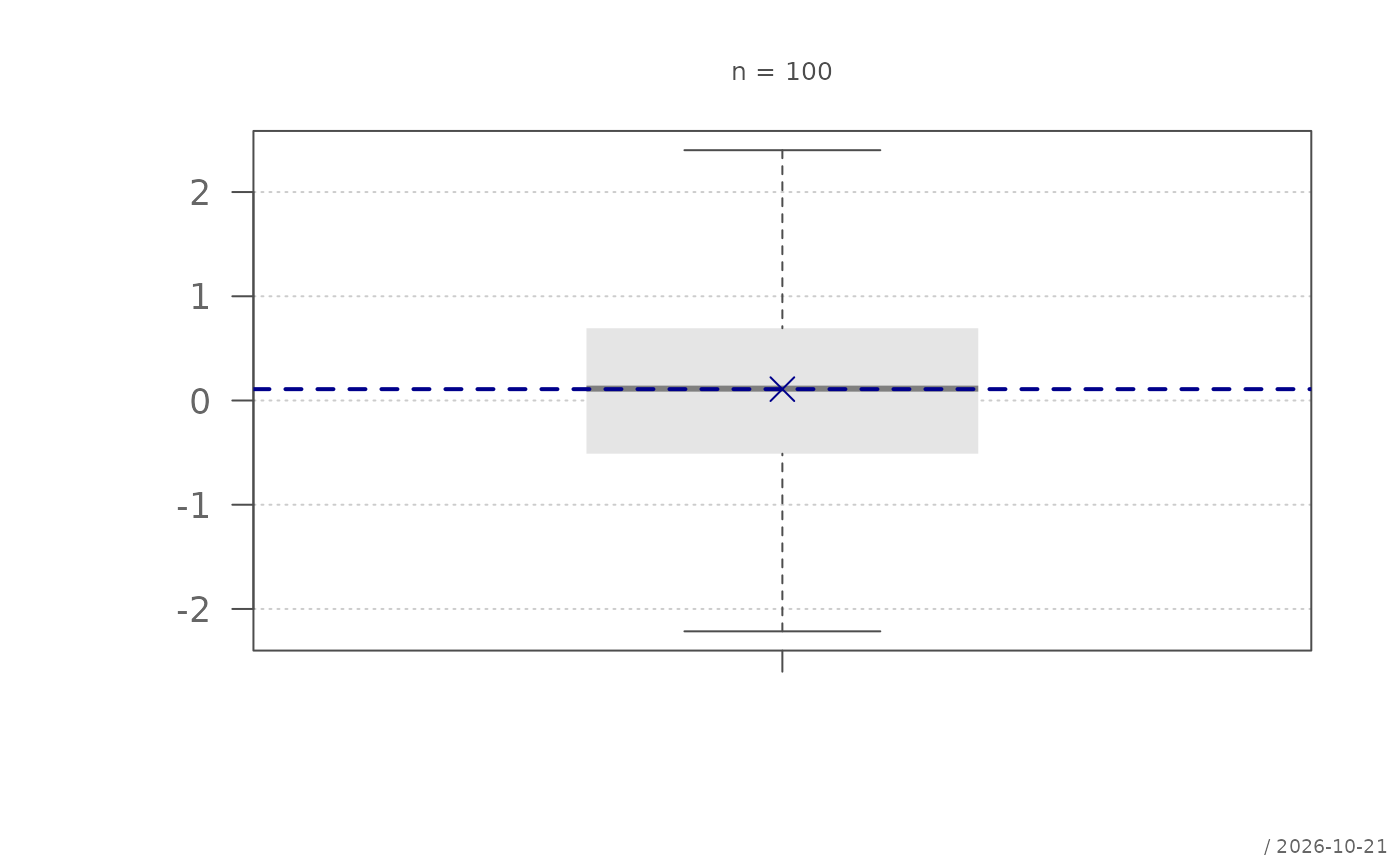

plotBox(x)

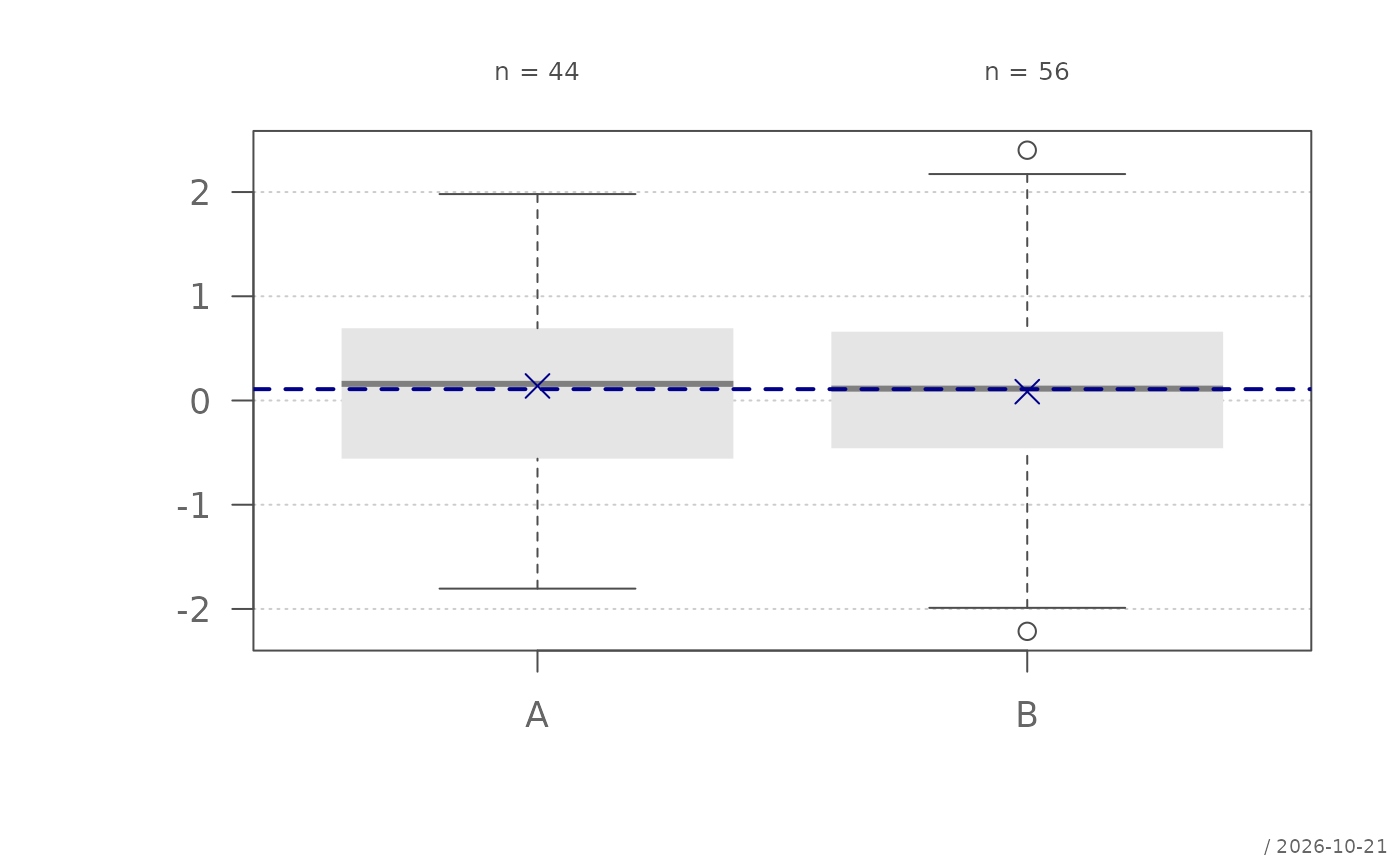

plotBox(x, g)

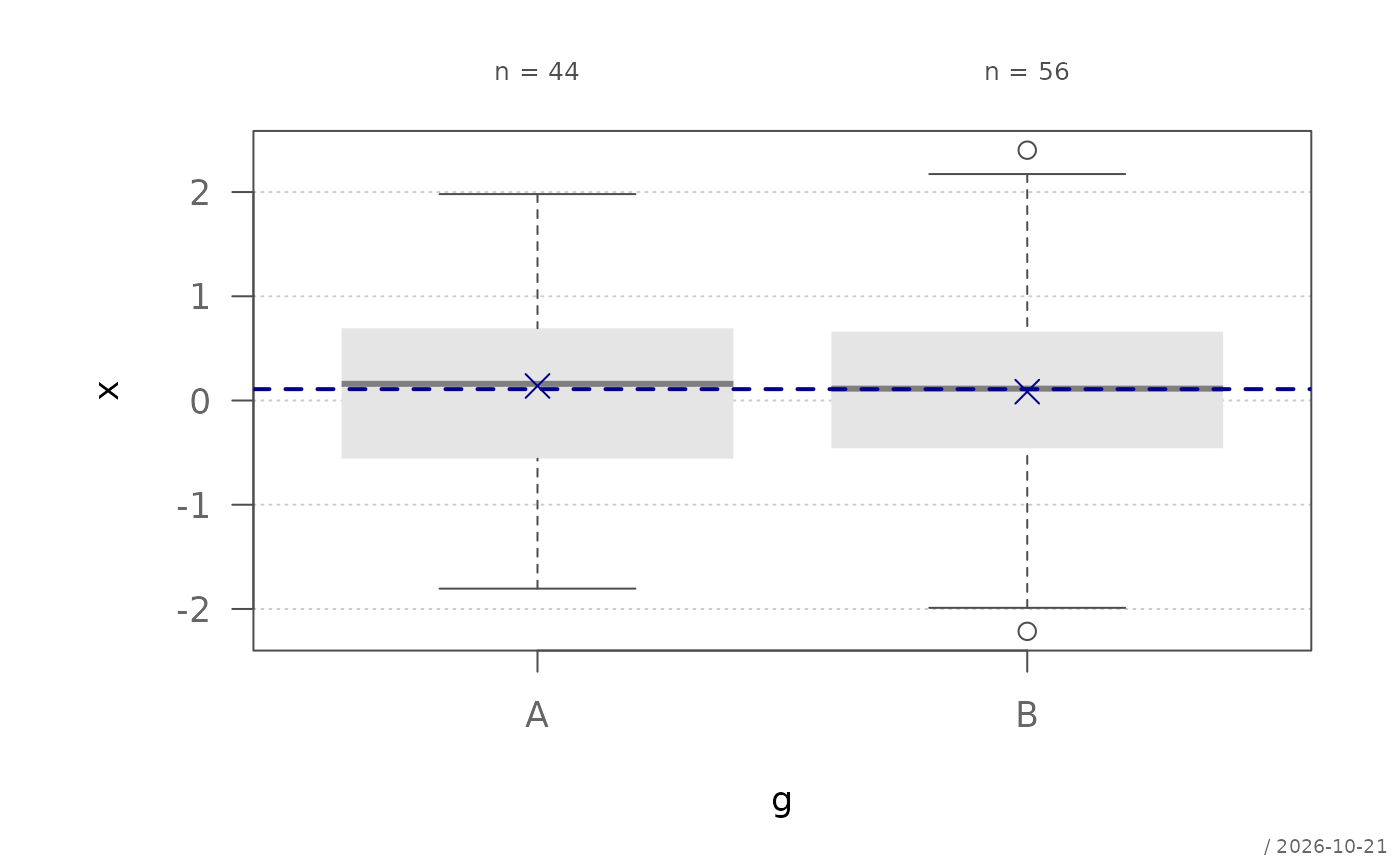

plotBox(x ~ g)


# data, subset and the cells of two grouping variables

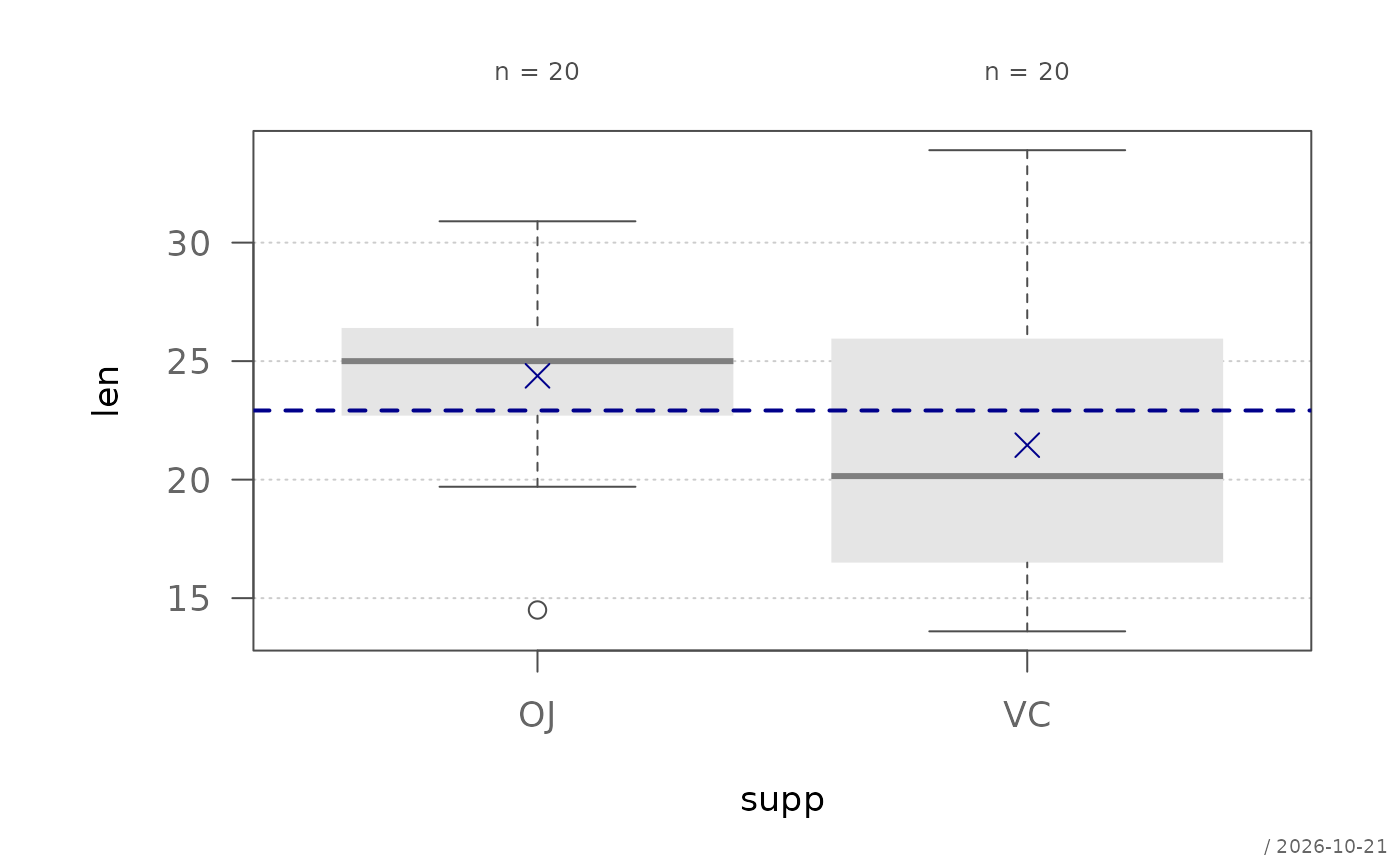

plotBox(len ~ supp, ToothGrowth, subset = dose > 0.5)

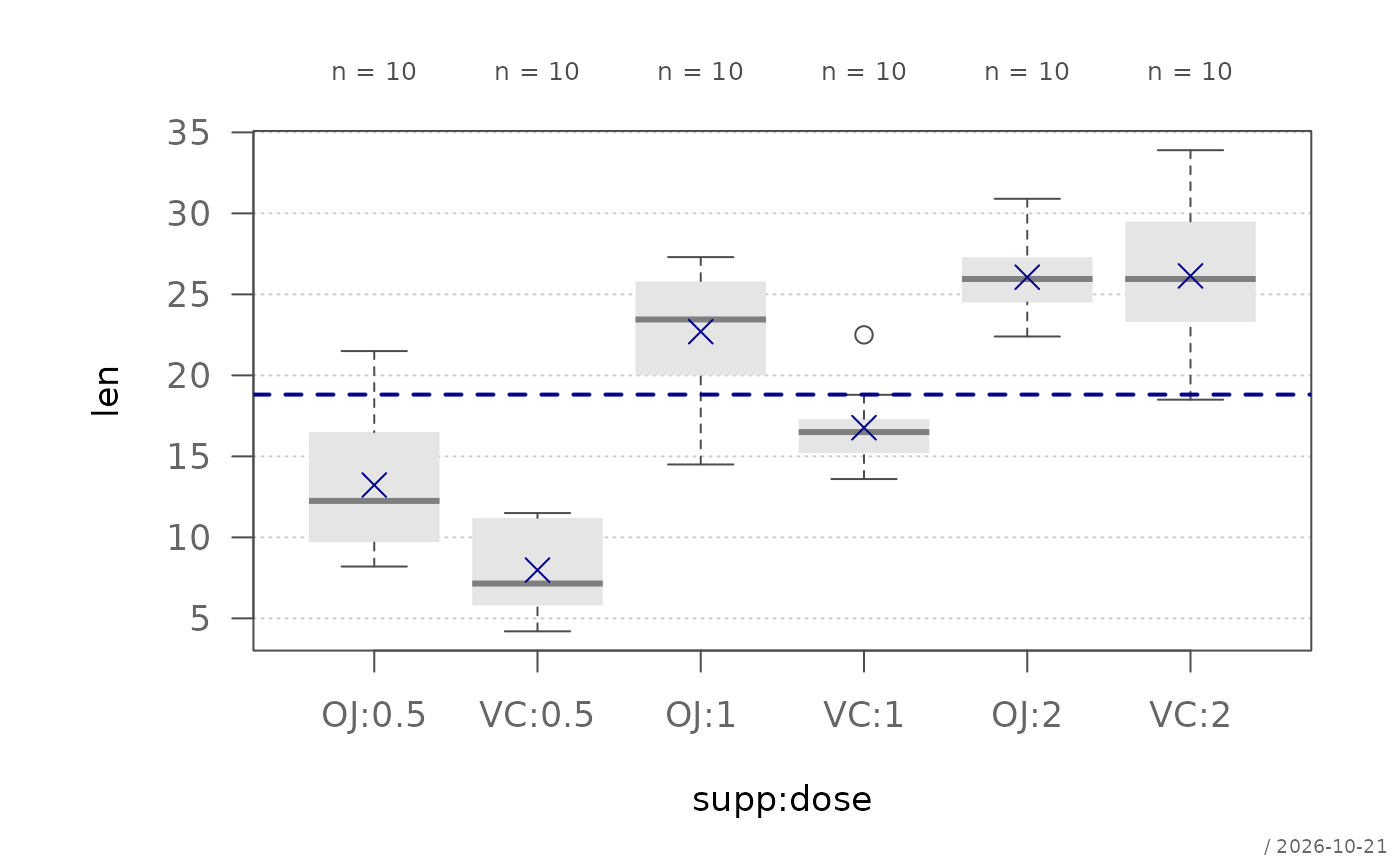

plotBox(len ~ supp:dose, ToothGrowth)


# horizontal boxes

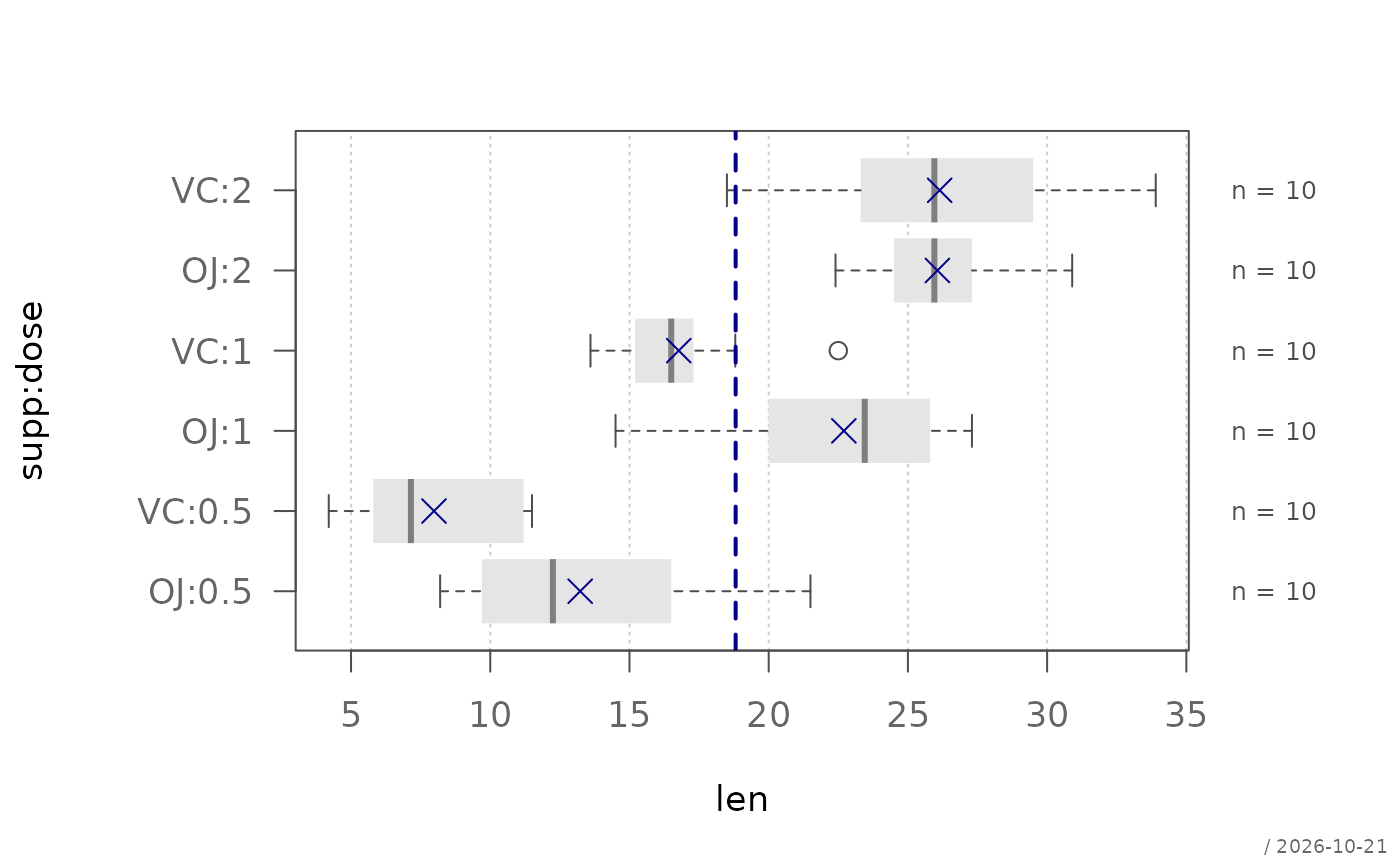

plotBox(len ~ supp:dose, ToothGrowth, horiz = TRUE)


# groups in a chosen order, e.g. by median

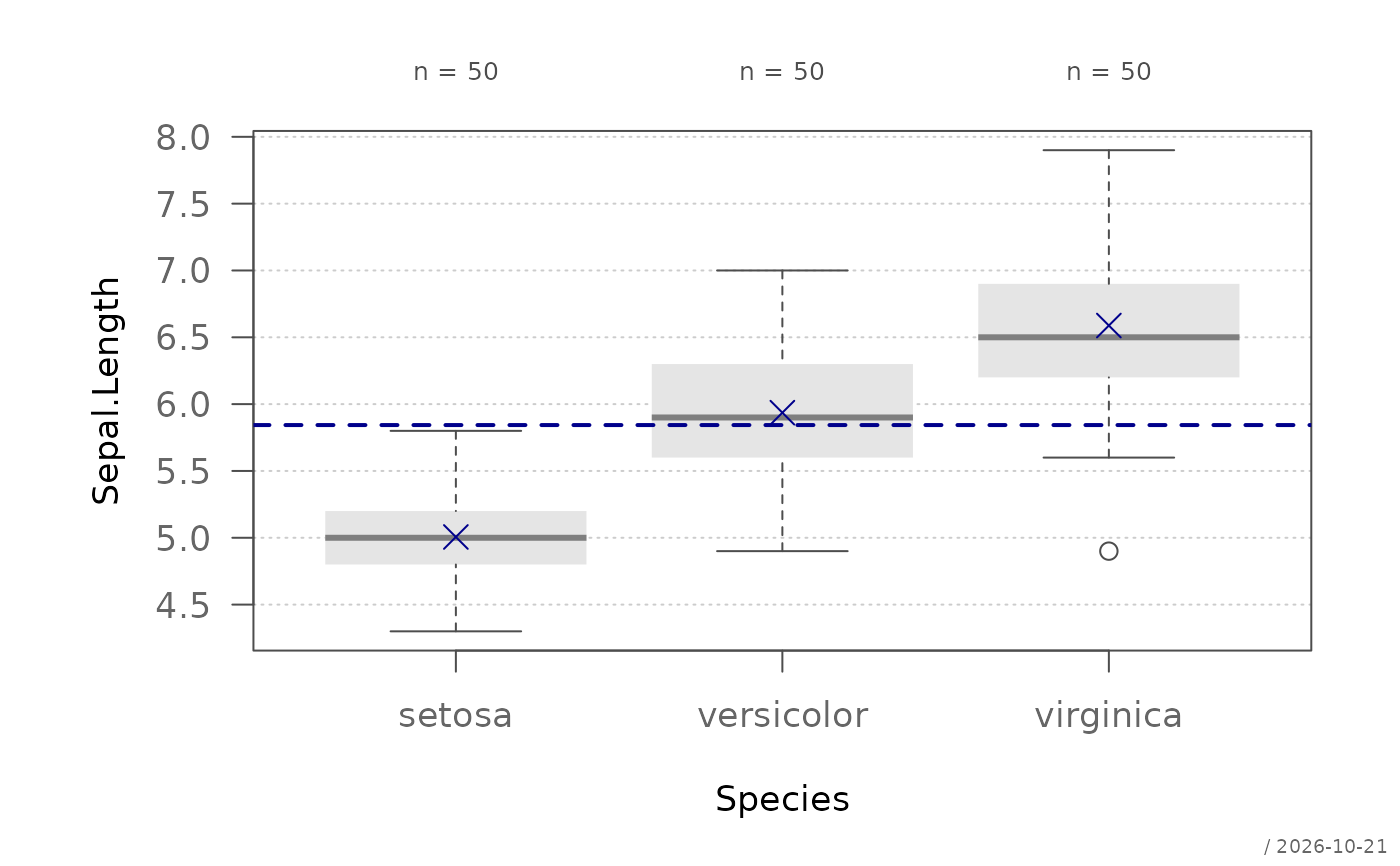

plotBox(Sepal.Length ~ Species, data = iris,
        order = c("versicolor", "virginica", "setosa"))

med <- tapply(iris$Sepal.Length, iris$Species, median)

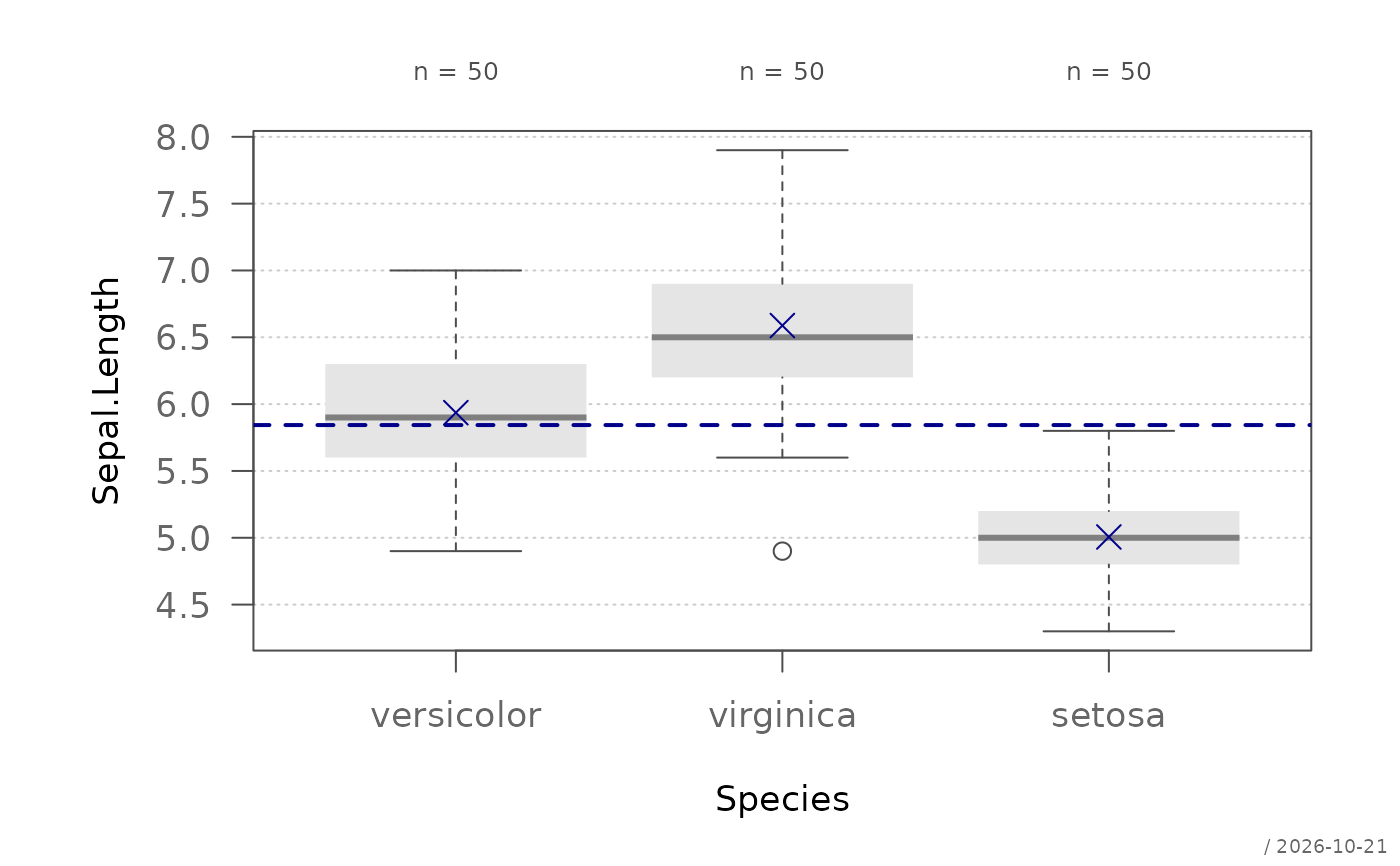

plotBox(Sepal.Length ~ Species, data = iris, order = order(med))
