Binary Tree

Create a binary tree of a given number of nodes n. Can be used to organize a sorted numeric vector as a binary tree.

Usage

plotBinaryTree(
  x,
  main = "Binary tree",
  horiz = FALSE,
  text = TRUE,
  line = TRUE,
  ...
)

Arguments

x: numeric vector to be organized as binary tree.
main: main title of the plot.
horiz: logical, should the plot be oriented horizontally or vertically (default).
text: properties of the text, can be any of the arguments of boxedText() (besides geometry and label).
line: properties of the line segments (col, lwd, lty).
...: the dots are sent to canvas().

Value

an integer vector of length n

Details

If we index the nodes of the tree as 1 for the top, 2–3 for the next horizontal row, 4–7 for the next, ... then the parent-child traversal becomes particularly easy. The basic idea is that the rows of the tree start at indices 1, 2, 4, ....

binaryTree(13) yields the vector c(8, 4, 9, 2, 10, 5, 11, 1, 12, 6, 13, 3, 7) meaning that the smallest element will be in position 8 of the tree, the next smallest in position 4, etc.

Note

Substantially based on code by Terry Therneau, with major extensions and improvements by the package author.

Examples


bedrock::binaryTree(12)
#>  [1]  8  4  9  2 10  5 11  1 12  6  3  7

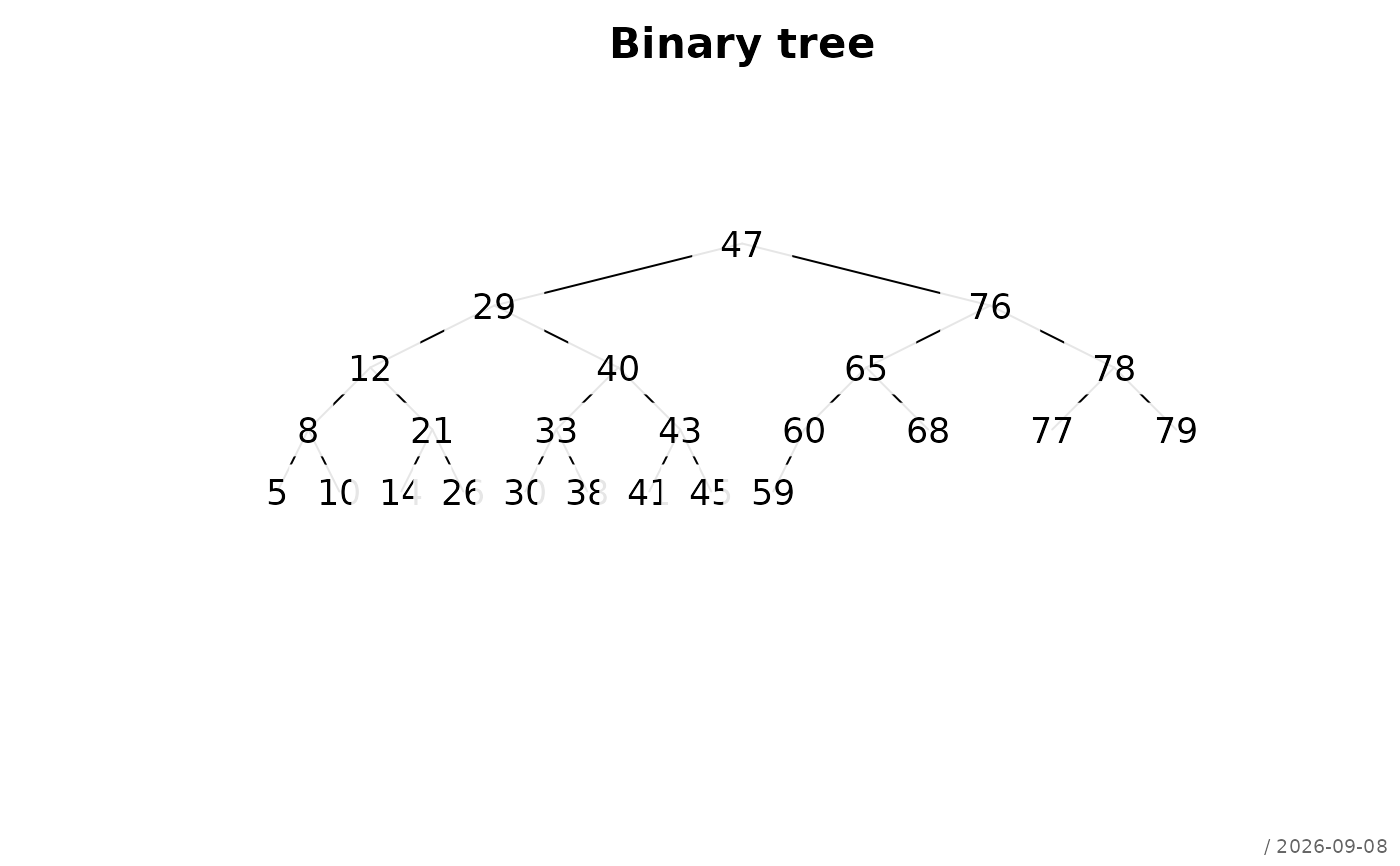

x <- sort(sample(100, 24))
z <- plotBinaryTree(x, cex=0.8)

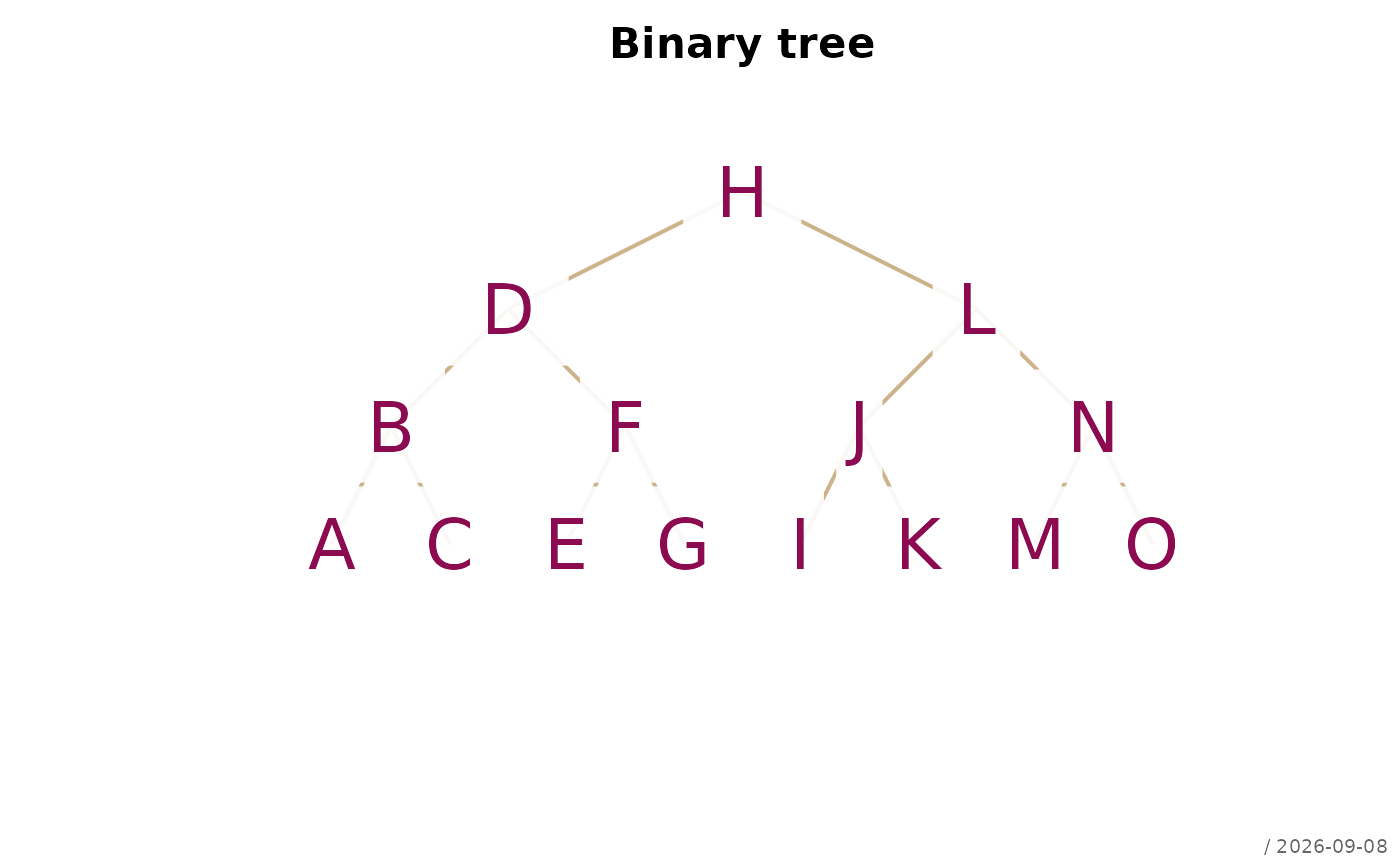

plotBinaryTree(LETTERS[1:15],
               text=list(col="deeppink4", cex=2),
               line=list(col="navajowhite3", lwd=2))

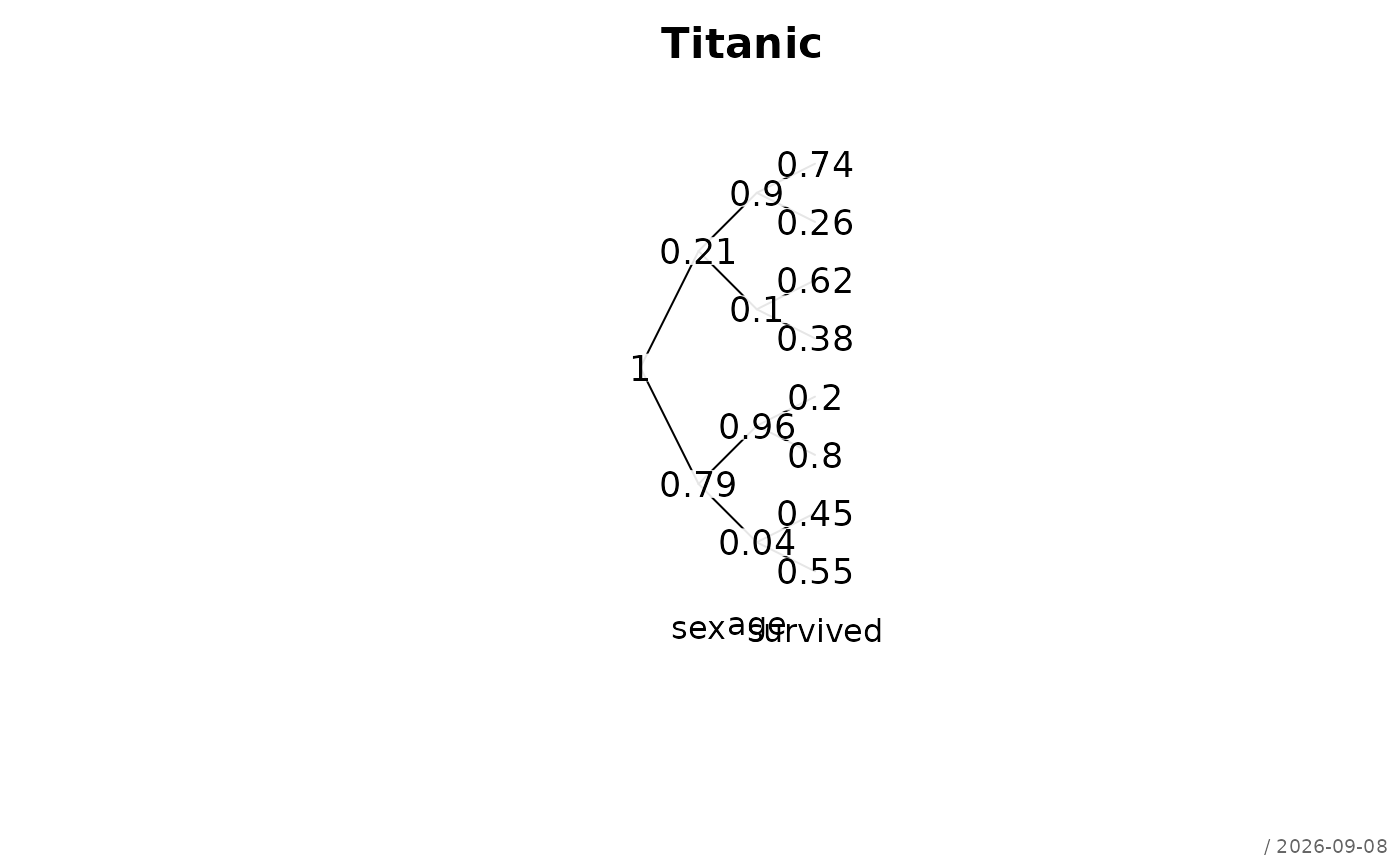

# Plot example - Titanic data, for once from a somwhat different perspective
tab <- apply(Titanic, c(2,3,4), sum)
cprob <- c(1, prop.table(apply(tab, 1, sum))
           , as.vector(aperm(prop.table(apply(tab, c(1,2), sum), 1), c(2, 1)))
           , as.vector(aperm(prop.table(tab, c(1,2)), c(3,2,1)))
)

plotBinaryTree(round(cprob[bedrock::binaryTree(length(cprob))],2), horiz=TRUE, cex=0.8,
            main="Titanic")
text(c("sex","age","survived"), y=0, x=c(1,2,3)+1)
