Draw an Axis With Formatted or Rotated Labels

A drop-in replacement for graphics::axis() that adds two conveniences: tick labels can be formatted through fm() via the fmt argument, and labels can be drawn at an arbitrary angle using srt (which graphics::axis() itself ignores). When rotated labels are requested the function also estimates the margin space they require and, optionally, widens the corresponding plot margin so the labels are not clipped.

Usage

axisFmt(
  side,
  at = NULL,
  fmt = NULL,
  labels = TRUE,
  srt = NULL,
  adj = NULL,
  estimateMar = TRUE,
  ...
)

Arguments

side: integer specifying which side of the plot the axis is drawn on, as in graphics::axis(): 1 = below, 2 = left, 3 = above and 4 = right.
at: numeric vector of tick positions. If NULL (default) the positions are determined with graphics::axTicks().
fmt: format specification passed to fm() to format the tick labels. If NULL (default) the labels are used as they are (or the bare tick values, coerced to character). See Details.
labels: either a logical or a character vector of labels. If TRUE (default) the labels are generated from at (formatted with fmt if supplied). A character vector is used verbatim.
srt: numeric, the string rotation angle in degrees. If NULL (default) labels are drawn horizontally through the ordinary graphics::axis() mechanism. Any other value triggers the rotated-label path described in Details (a common choice for long category names is srt = 45).
adj: label justification passed to graphics::text(). If NULL a sensible default is chosen from side and the rotation: right aligned with the tick for the x-axes (c(1, 0.5)) and bottom aligned for the y-axes (c(0.5, 0)).
estimateMar: logical. If TRUE (default) and srt is set, the margin on side is temporarily widened to the estimated space needed by the rotated labels (restored on exit). Set to FALSE to leave the margins untouched.
...: further arguments passed to both graphics::axis() (for the line and ticks) and graphics::text() (for the labels). Graphical parameters shared by the two (e.g. col, cex) therefore affect both.

Value

invisibly, a list with components at (the tick positions used) and mar (the estimated margin requirement in lines for the rotated labels, or NA when srt is NULL).

Details

The fmt argument is passed straight to fm() and therefore accepts the full range of format specifications: a special short code (e.g. "\%", "e", "eng", "p"), an ISO-8601 date pattern (e.g. "MMM yyyy"), a Style object, a bare (named) list treated as a style template (e.g. fmt = list(digits = 1, bigMark = " ")), or a function of x. See fm() for the details.

When srt is set, the axis line and ticks are drawn without labels via graphics::axis(), and the labels are added separately with graphics::text() using xpd = TRUE so they may extend into the figure margin. The required margin width is estimated by projecting the rotated label boxes onto the axis normal (see estimateMar).

Note that changing par("mar") after the plot region has been established does not resize the existing region. When estimateMar is TRUE the widened margin therefore mainly ensures enough device space outside the plot region for the (xpd = TRUE) labels. For a clean layout, set the margin before calling graphics::plot(); the returned mar component reports the estimated requirement so a calling routine can reserve the space in advance.

Author

Andri Signorell andri@signorell.net

Examples

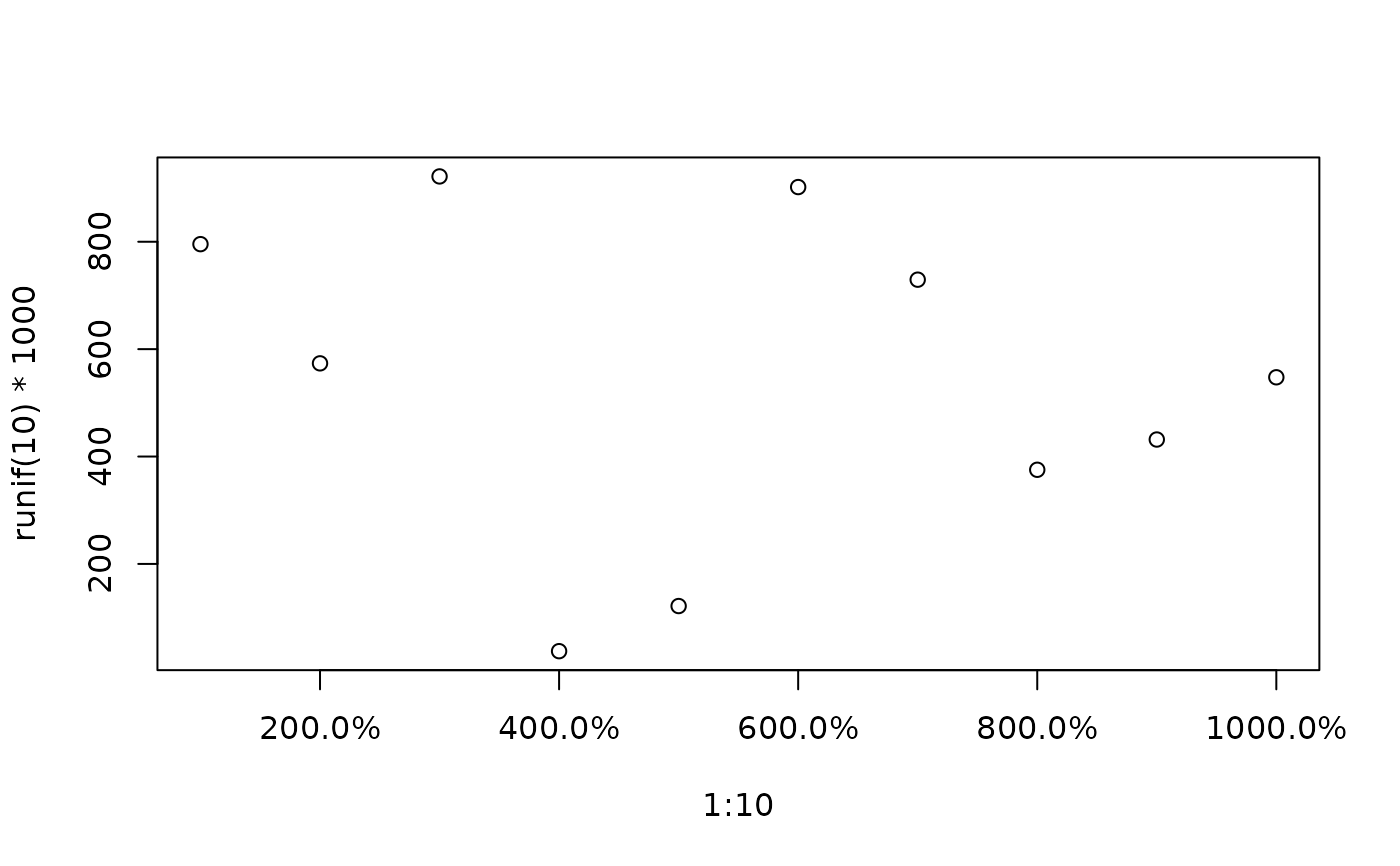

# formatted tick labels
plot(1:10, runif(10) * 1000, yaxt = "n", xaxt = "n")
axisFmt(2, fmt = list(digits = 0, bigMark = " "))
axisFmt(1, fmt = list(fmt = "%", digits = 1))


# rotated category labels (margin widened automatically)

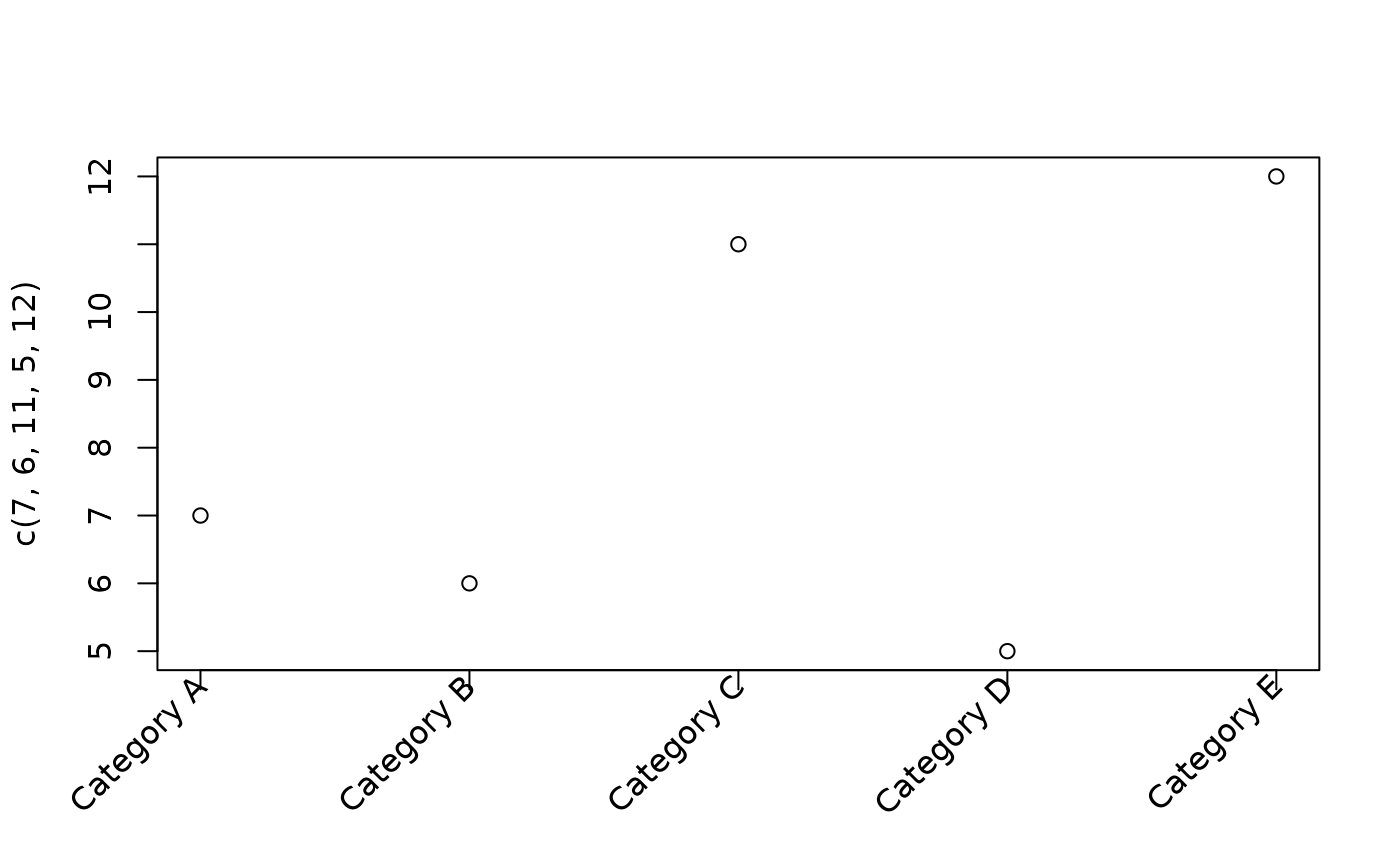

plot(1:5, c(7, 6, 11, 5, 12), xaxt = "n", xlab = "")
axisFmt(1, at = 1:5, labels = paste("Category", LETTERS[1:5]), srt = 45)
